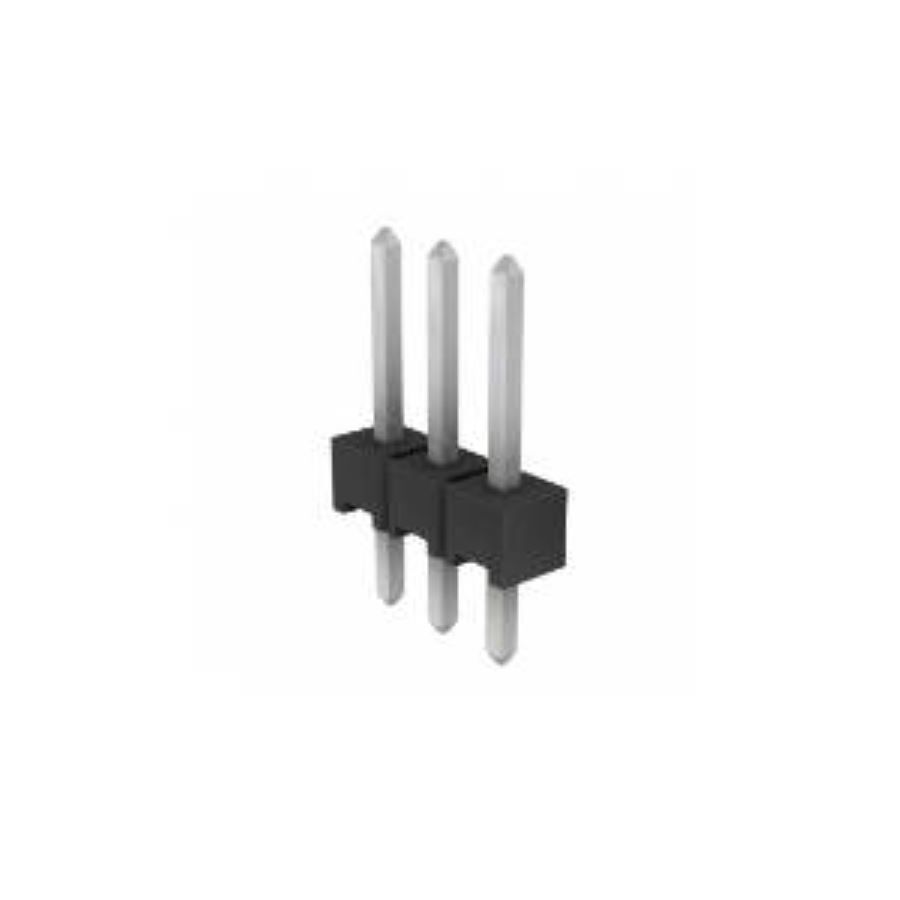

5-146274-3
Manufacturer:
TE Connectivity
Mfr.Part #:
5-146274-3
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:3 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 7.21 mm |
| Termination | Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Voltage Rating | 750 V |
| Depth | 2.34 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Lead Length | 3.175 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Vertical |
| Operating Supply Voltage | 30 V |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 3 |
| ELV | Compliant |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Polymer |
| Contact Style | Pin |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 3 A |
| Housing Color | Black |
| Contact Mating Length | 8.0772 mm |
| Keyed | No |
| PCB Thickness | 1.5748 mm |
| Contact Gender | Male |
| High Temperature Housing | Yes |
| Mating Post Length | 8.08 mm |
| Contact Shape | Square |
| High Speed Serial Data Connector | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Termination Post Length | 3.18 mm |
Stock: 22661
Distributors
pcbx
pcbxUnit Price$0.14718
Ext.Price$0.14718
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.14718 | $0.14718 |
